Printing with Mac OS 8.6 to 9.x

Making Settings in the Layout Dialog Box

Making the Fit to Page setting
Making Multi-Page settings
Making Print Order settings

You can make Fit to Page, Multi-Page, and Print Order settings in this dialog box.

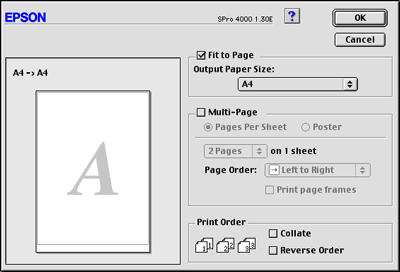

Making the Fit to Page setting

You can enlarge or reduce the size of the data proportionally to make it fit the paper size you selected in the Paper Size pull-down menu. To use this function, select Fit to Page, and select the paper size you loaded in the printer in the Output Paper Size pull-down menu.


[Top]

Making Multi-Page settings

Selecting Multi-Page lets you choose between the Pages Per Sheet and Poster settings.

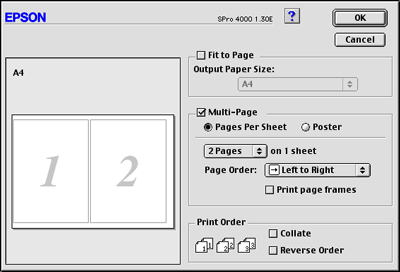

Making Pages Per Sheet settings

Select Pages Per Sheet as the Multi-Page setting to print two or four pages of your document on one sheet of paper.

When Pages Per Sheet is selected, you can make the following settings:

2 Pages
4 Pages

Prints two or four pages of your document on a single piece of paper.

Page Order

Allows you to specify the order in which the pages will be printed on the sheet of paper.

Print page frames

Prints frames around the pages printed on each sheet.

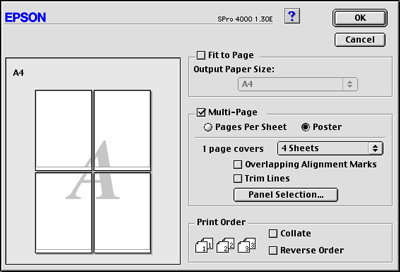

Making Poster settings

A single document page can be enlarged to cover 4, 9, or 16 printed sheets of paper. Select Poster as the Multi-Page setting to print a poster-size image.

You can make the following settings.

1 page covers xx sheets

Specifies how many printed sheets of paper the enlarged document page is to cover. You can select 4, 9, or 16 pages.

Overlapping Alignment Marks

Slightly overlaps the images and prints alignment markers so that they can be aligned more precisely.

Trim Lines

Prints border lines on the images to guide you when trimming the pages.

Panel Selection

Click the panels you do not need to print, then click the OK button to print the remaining panels.

If you only want to print a few of the panels without printing the entire poster, click Panel Selection, then click the panels that you do not wish to print, and then click OK. Only the panels that you did not click will be printed.


[Top]

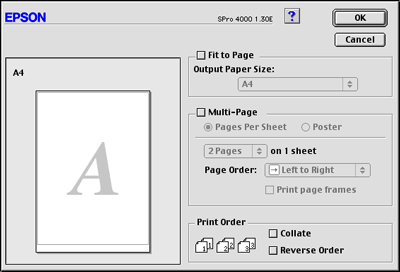

Making Print Order settings

You can specify the printing order for your print job. When printing multiple copies of your document, select Collate to print one complete document set at a time. Select Reverse Order to print your documents in reverse order, starting with the last page.


[Top]
