How to / Replacing Ink Cartridges

Checking the Ink Supply

Using the LCD panel

Using the LCD panel

To check which cartridge requires replacing, check the LCD panel.

Black ink icon

Color ink icon

Ink icon indicates the amount of the ink remaining as follows:

Black ink icon	Color ink icon	Status
blinks	blinks	Ink cartridge is empty. Replace with a new one.
and blinks	and blinks	Ink cartridge is nearly empty.
comes on	comes on	Ink remaining

For Windows users

You can check the amount of ink remaining in the ink cartridges using EPSON Status Monitor 3 or the Progress Meter. Refer to the appropriate section below for details.

Note:

You can also check which cartridge needs replacing with the LCD panel. See Using the LCD panel for details.

EPSON Status Monitor 3

Access EPSON Status Monitor 3 in one of the following ways.

Double-click the printer-shaped shortcut icon on your Windows taskbar. To add a shortcut icon to the taskbar, see Monitoring Preferences.

Open the printer software, click the Maintenance tab, then click the EPSON Status Monitor 3 button.

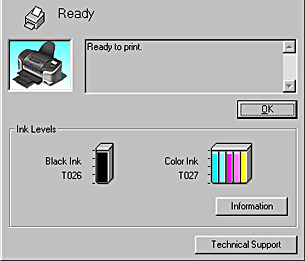

A graphic display showing the amount of ink remaining will appear.

Note:

For the color ink cartridge, the color with the least amount of ink remaining determines the level that is displayed for all of the colors in the cartridge.

Progress Meter

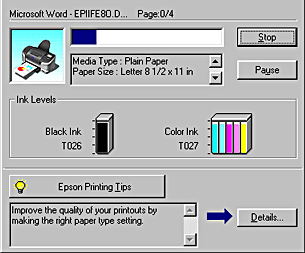

The Progress Meter dialog box appears automatically when you send a print job to the printer. You can check the amount of ink remaining from this dialog box.

For Macintosh users

You can check the amount of ink remaining in the ink cartridges using the StatusMonitor. Follow the steps below.

Note:

You can also check which cartridge needs replacing with the LCD panel. See Using the LCD panel for details.

For Mac OS 8.6 or 9.x users

Click Print or Page Setup on the File menu of your application. The Print dialog box will appears.

Click the Utility icon button, then click the EPSON StatusMonitor button in the Utility dialog box.

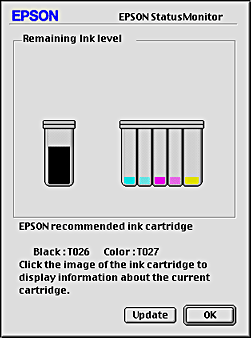

A graphic displaying the amount of ink remaining will appear.

Note:

The graphic displays the amount of ink that was remaining when EPSON StatusMonitor was first opened. To update the ink-level information, click Update.

For the color ink cartridge, the color with the least amount of ink remaining determines the level that is displayed for all of the colors in the cartridge.

For Mac OS X users

Double-click Macintosh HD (the default hard disk name), double-click the Applications folder, and then double-click the EPSON Printer Utility icon. The Printer List window appears.

Select your printer, and then click OK. The EPSON Printer Utility dialog box appears.

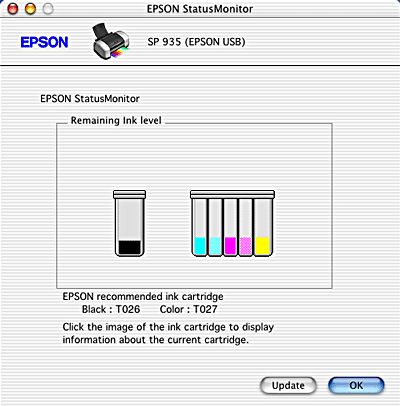

Click the EPSON StatusMonitor button. The StatusMonitor dialog box appears.

Note:

The graphic displays the amount of ink that remained when EPSON StatusMonitor was first opened. To update the ink-level information, click Update.

For the color ink cartridge, the color with the least amount of ink remaining determines the level that is displayed for all of the colors in the cartridge.
