Printing with Macintosh / Macintosh OS 8.5.1, 8.6 and 9.x Users
Defining a custom paper size
In the Page Setup dialog box, you can change the paper size, specify the paper orientation, print on both sides of the paper, rotate your document by 180 degrees, reduce or enlarge your printout, and adjust the printable area.

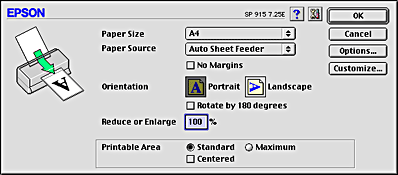

Choose Page Setup from the File menu of your application. The Page Setup dialog box will appear.
You can make the following settings in the Page Setup dialog box:
Paper Size |
Select the paper size that you want to use. If you want to define a custom paper size, see Defining a custom paper size. |
Paper Source |
Select the paper source you wish to use from the following selections:
Sheet Feeder:
Roll Paper: |
No Margins |
Check this box when you want to print with no margins.
Sheet Feeder:
Roll Paper: You can use the following media with this feature:
Photo Paper:
Matte Paper-Heavyweight:
Index Card:
Note When using this feature with Roll Paper, you need to use your image-editing software to make the image 4 mm wider than the roll paper. Printing with this feature selected takes longer than for normal printing. Because this feature enlarges the image to a size slightly larger than the paper size when Sheet Feeder is selected as the Paper Source setting, the portion of the image that extends beyond the edges of the paper will not be printed. Print quality may decline in the top and bottom areas of the printout, or the area may be smeared when printing on media other than that listed above. We recommend printing a single sheet to check quality before printing large jobs. You cannot use this feature with the following media: Photo Quality Glossy Film, Ink Jet Transparencies, Iron-On Cool Peel Transfer Paper, 360 dpi Ink Jet Paper. |
Orientation |
Select Portrait (tall) or Landscape (wide) to change the orientation of your printout. To print close to the bottom of the page, select the Rotate by 180 degrees check box. |
Reduce or Enlarge |
Use this setting to reduce or enlarge the size of your image between 25% and 400%. |
Printable Area |
Use this option in the Printable Area Box to adjust the total area available for printing when Sheet Feeder is selected as the Paper Source setting. This feature is not available when No Margins or Roll Paper is selected. To center the printout, select Center. To increase the printable area at the bottom edge from 14 mm to 3 mm, select Maximum. Do not select Maximum while using Premium Glossy Photo Paper.
Note: |
Roll Paper Option |
The Roll Paper Option settings are only available when Roll Paper is selected as the Paper Source setting. These features are not available when Sheet Feeder is selected. The settings are as described below.
Banner Mode:
Cut Sheet Mode:
Save roll paper:
Print page frame: |
You can define a custom paper size. To do so, you can either create a new paper size, or base your custom paper size on a pre-existing paper size. Refer to the appropriate section below.
If the appropriate paper size is not included in the Paper Size list in the Page Setup dialog box, follow the steps below to define a new custom paper size.

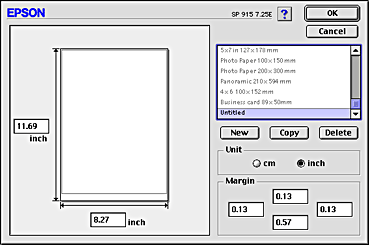

In the Page Setup dialog box, click Customize. The following dialog box will appear. |
To define a new paper size, click New. The dialog box will update to allow you to enter a name for the new size. |
Type a unique name for the paper size in the Paper Size list. |
Specify the measurement unit as either inch or cm. |
Enter the width and the height of your paper by typing the text in the appropriate box. |
Specify the margins by typing in the Margin input boxes or by manipulating the preview image. |
Click OK. You return to the Page Setup dialog box. |
You can define up to 100 paper sizes. The paper size names you create will appear in the Paper Size list in the Page Setup dialog box.
To delete a custom paper size, click Customize in the Page Setup dialog box, select the paper size from the list in the Custom Paper dialog box, and click Delete.
Follow the steps below to copy an existing paper size to use as a template.
Select the existing paper size to copy and click Copy. |
Specify the measurement unit as either inch or cm. |
Specify the margins by typing in the Margin input boxes or by manipulating the preview image. |
Click OK. |
