Poster printing allows you to print poster-size images by enlarging one page to cover several sheets of paper.
 |
Note:
|
 | -
This feature is not available with Mac OS X.
|
|
 | -
This feature is not available when selecting the Borderless check box under Paper Options on the Main menu (Windows) or No Margins check box in the Print dialog box (Macintosh).
|
|
Paper loading
Load paper in your printer.

[Top]
Driver settings
For Windows
 |
Access the printer driver.
|
 |
Select the desired Type setting under Paper Options on the Main menu.
|
 |
Select Sheet as the Source setting under Paper Options on the Main menu.
|
 |
Select the desired Size setting for the original print data under Paper Options on the Main menu.
|
 |
Select the Poster Printing option as the Multi-Page setting on the Page Layout menu, and then click the up or down arrow to select 2x2, 3x3 or 4x4.
|
 |

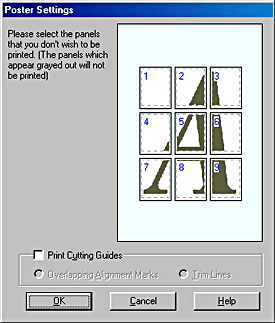

Click Settings to adjust the way your poster will print. The Poster Settings dialog box opens.
|
 |
Make the following settings for poster printing.
|
Print Cutting Guides
|
Select this check box to turn the cutting guide options on.
|
Overlapping Alignment Marks
|
Slightly overlaps the panels and prints alignment markers so that the panels can be aligned more precisely.
|
Trim Lines
|
Prints border lines on the panels to guide you when trimming the pages.
|
 |  |
Note:
|
 |  |
If you only want to print a few of the panels without printing the entire poster, click the panels that you do not wish to print.
|
|
 |
Click OK to close the Poster Settings dialog box.
|
For Macintosh
 |
Access the printer driver.
|
 |
Select the desired Paper Size setting for the original print data in the Page Setup dialog box.
|
 |
Select Auto Sheet Feeder as the Paper Source setting in the Page Setup dialog box.
|
 |
Select the desired Media Type setting in the Print dialog box.
|
 |

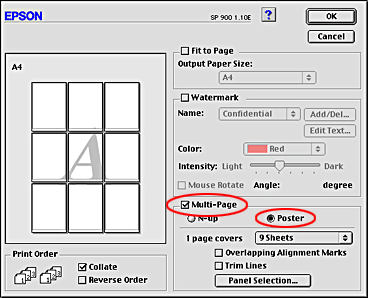

Select the Multi-Page check box in the Layout dialog box, and then select Poster.
|
 |
Make the following settings for poster printing.
|
1 page covers xx sheets
|
Specifies how many printed sheets of paper the enlarged document page is to cover. You can choose from 4, 9, or 16 sheets.
|
Overlapping Alignment Marks
|
Slightly overlaps the panels and prints alignment markers so that the panels can be aligned more precisely.
|
Trim Lines
|
Prints border lines on the panels to guide you when trimming the pages.
|
Panel Selection
|
Click the panels you do not need to print, and then click the OK button to print the remaining panels.
|
 |  |
Note:
|
 |  |
If you only want to print a few of the panels without printing the entire poster, click Panel Selection, click the panels that you do not wish to print, and then click OK.
|
|
 |
Click OK to close the Layout dialog box.
|

[Top]
Printing
After finishing all above steps, start printing.

[Top]
How to make a poster from your printouts
Here is an example of how to make a four-sheet poster of your printout. Refer to the accompanying illustrations.
 |

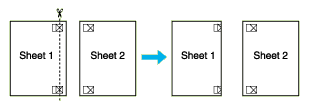

Vertically cut the margin of sheet 1 along the line connecting the alignment markers as shown in the illustration.
|
 |
Place sheet 1 on sheet 2, align the cross markers on both sheets, and then temporarily tape them from the back side.
|
 |
Cut off the taped sheets along the line between the alignment markers.
|
 |
Align the sheets using the alignment markers, and then tape them from the back side.
|
 |
Repeat steps 1 to 4 to tape sheets 3 and 4 in the same way.
|
 |
Repeat steps 1 to 4 to tape the top and bottom double sheets.
|
 |
Cut off the remaining margins.
|
 |
Warning:
|
 |
Be careful when using sharp-edged tools.
|
|
