How To / Using Roll Paper

Removing Roll Paper from the Printer

Removing roll paper from the printer using the control panel

Follow the procedure described below to remove the paper from the printer.

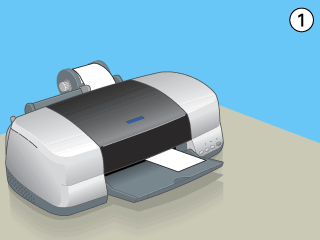

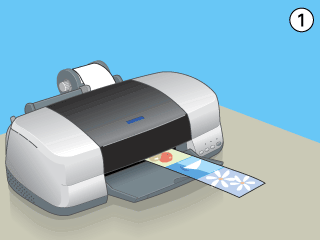

Press the  roll paper button to feed the paper. A cutting guideline is printed on the roll paper.

Note:
To cancel the paper removal sequence and print more data, press the  roll paper button and print the next document. The paper will return to the printing start position before starting to print the next document. Do not press the  roll paper button more than necessary, otherwise the printout may be damaged.

Cut the paper along the printed line. Never pull the paper as you cut it, otherwise the printout may be damaged. When cutting the paper, do not cross the line towards the printer, as this may cause paper feed problems.

Note:
EPSON recommends that you use a triangle or other tool to ensure that the end of the roll is cut perpendicularly. A diagonal cut may cause paper feed problems.

Set the adjust lever to the  position.

Turn back the roll paper knob and roll up the roll paper. Gently remove the paper.

Set the adjust lever to the  position.

Removing roll paper from the printer using the control panel

After cutting the paper, hold down the  roll paper button for about 3 seconds. The paper feeds in reverse to a position where it can be easily removed from the sheet feeder at the back of the printer. The  paper light flashes. If it does not feed to this position, repeat this step.

Turn back the roll paper knob and roll up the roll paper. Gently remove the paper, and then press the roll paper button to clear the  paper light.
