How To / Setting Up Your Printer on a Network

For Windows XP and 2000 Users

Setting up your printer as a shared printer
Accessing the printer through a network

This section tells you how to set up your printer so that other computers on the network can use it.

Note:
This section is written for small networks only. If you are on a large network and would like to share your printer, consult your network administrator.

First, you need to set up the printer as a shared printer on the computer to which the printer is connected. Next, specify the network path to the printer from each computer that will use it and install the printer software on those computers.

Setting up your printer as a shared printer

To share a printer with other computers on a network, follow the steps below to configure the computer to which the printer is connected.

Click Start, point to Settings, and click Printers.

Select the icon for your printer, then click Sharing on the File menu.

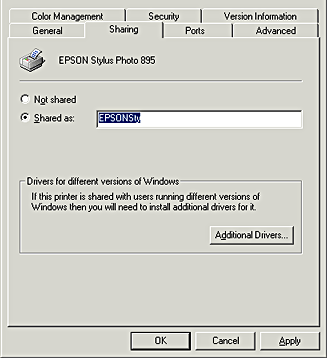

Click Shared as then type the Share Name.

Click OK.

Note:
Do not select a driver from Additional Drivers list in the Additional Drivers dialog box.


[Top]

Accessing the printer through a network

To access your printer from other computers on the network, follow the steps in this section for each computer that will access the printer.

Note:
Your printer must be set up as a shared resource on the computer to which it is directly connected before you can access it from another computer. For instructions, see Setting up your printer as a shared printer.

Install the printer software from the software CD-ROM.

Click Start, point to Settings, and then click Control Panel.

Double-click the Printers icon.

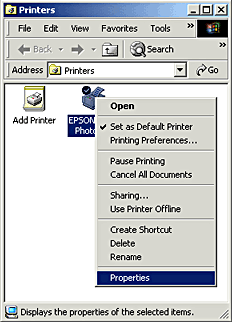

Right-click the icon for your printer, then click Properties on the shortcut menu that appears. The printer software opens.

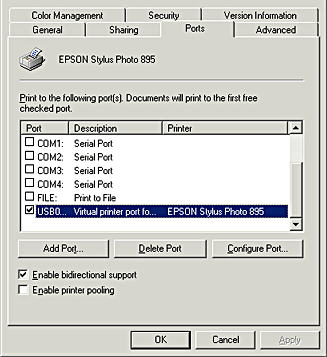

Click the Ports tab, then click Add Port.

In the Printer Ports dialog box, select Local Port, then click New Port.

In the Port Name dialog box, enter the path information for your printer using the format below:
\\name of computer that is connected to the printer\name of the shared printer.

Click OK to return to the Printer Ports dialog box.

Click Close to return to the Ports menu.

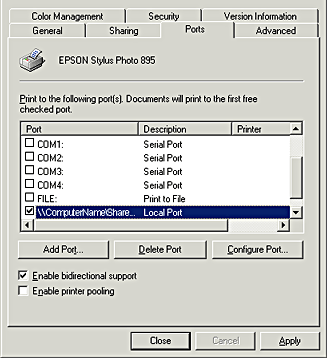

On the Ports menu, make sure that the new port is included in the list and that the corresponding check box is selected. Click OK to close the printer software.


[Top]


Previous

Next
Version 2.00E, Copyright © 2002, SEIKO EPSON CORPORATION
