You can modify your printout style using a variety of printer driver settings located on the Paper and Layout menus.

On the Paper menu, you can set the paper size, the number of copies, the orientation of your printout, and the printable area. On the Layout menu, you can automatically match the document size to the paper size, print two or four pages on a single sheet of paper, print poster-size images by enlarging one page to cover several sheets, or place watermarks on documents.

Note:
Layout menu is enabled only when you select Auto Sheet Feeder as a Paper Source in the Paper menu.

Making the Paper settings

Use the settings on the Paper menu to change the paper size, set the number of copies and other copy parameters, specify the paper orientation, and adjust the printable area.

The settings which are available vary depending upon whether Auto Sheet Feeder or one of the roll paper options is selected as the Paper Source.

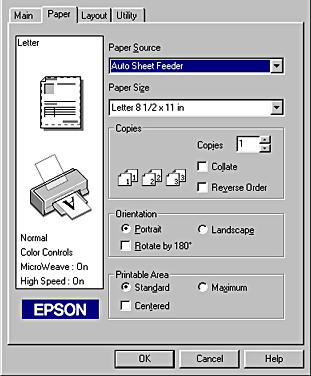

When you select Auto Sheet Feeder as the Paper Source, the driver will appear as shown below.

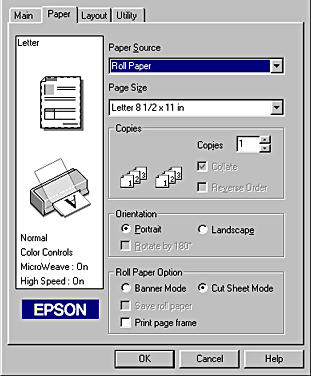

When you select either roll paper option as the Paper Source, the driver will appear as shown here.

You can make the following settings on the Paper menu:

Paper Source

Select the paper source you wish to use from the following selections.

Auto Sheet Feeder:
Select this when printing on normal paper.

Roll Paper:
Select this when printing on roll paper. This leaves a 3 mm margin on both the right and the left sides of the roll paper while the document prints.

Roll Paper [Zero Margins]:
Select this only when printing on roll paper which is 89 or 100 mm in width. This eliminates the margins on both sides of the roll paper while the document prints.

Paper size

Page Size

Select the paper or page size you want to use. You can also add a custom paper size.

Copies

Select the number of copies you wish to print. You can select Collate to print one set at a time or Reverse Order to determine the order in which you print multiple copies of your document.

Orientation

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout. If you need to print closer to the bottom of the page, select the Rotate by 180° check box.

Printable Area

Use the options in the Printable Area box to adjust the total area available for printing when Auto Sheet Feeder is selected as the paper source. This feature is not available when Roll Paper or Roll Paper [Zero Margins] is selected.

If you want to center the printout, select Center. If you need to increase the printable area, select Maximum. Do not select Maximum when using Premium Glossy Photo Paper.

Note:
When Maximum is selected, the print quality may decline at the edges of the printout. Before printing large jobs using this setting, print a single sheet to confirm quality.
When Maximum is selected, make sure the paper loaded in the sheet feeder is not curled.

Roll Paper Option

The Roll Paper Option settings are only available when Roll Paper or Roll Paper [Zero Margins] is selected as the paper source. These features are not available when Auto Sheet Feeder is selected.

The settings are as follows:

Banner Mode:
Select this mode when you wish to print multi-page data as continuous data on the roll paper, rather than as individual pages. When this check box is selected, the Save roll paper check box is enabled.

Cut Sheet Mode:
Select this mode when you wish to print the multi-page data as individual pages, rather than as continuous data. When this check box is selected, the Print page frame check box is enabled.

Save roll paper:
Select this check box when you wish to save roll paper. When this check box is selected, the blank portion of the last page of your document is not fed through the printer. This feature is only available when Banner Mode is selected.

Print page frame:
Select this check box to print a line on the roll paper between pages in a multi-page document to indicate where the paper should be cut. This feature is useful when it is unclear where the page breaks should be. This feature is only available when Cut Sheet Mode is selected.


[Top]

Fitting your document to the paper size

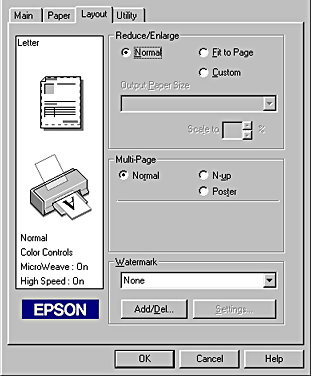

Use the Reduce/Enlarge options on the Layout menu to fit your document to the paper size you will print on.

You can select from the following settings.

Normal

Prints your document at its normal size.

Fit to Page

Proportionally enlarges or reduces the size of your document to make it fit the paper size you select in the Paper Size list on the Paper menu.

Custom

Allows you to manually reduce or enlarge an image. Click the arrows next to the Scale to box to select a percentage between 10% and 400%.


[Top]

Printing two or four pages on one sheet

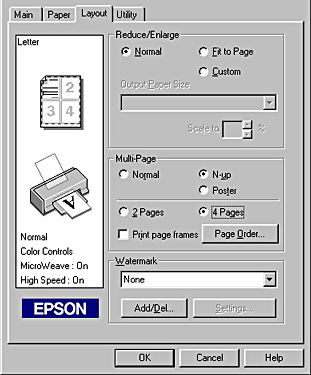

Select N-up as the Multi-Page setting on the Layout menu to print two or four pages of your document on one sheet of paper.

To print more than one page on the piece of paper, you should make the following settings:

2 Pages
4 Pages

Prints two or four pages of your document on a single piece of paper.

Page Order

Opens the Print Layout dialog box, where you can specify the order in which the pages will be printed on the sheet of paper. Some settings may be unavailable, depending upon your Orientation selection on the Paper menu.

Print page frames

Allows you to print a frame around each page that is printed on the sheet of paper.


[Top]

Printing posters

A single document page can be enlarged to cover 4, 9, or 16 printed sheets of paper. Select Poster as the Multi-Page setting to print a poster-size image.

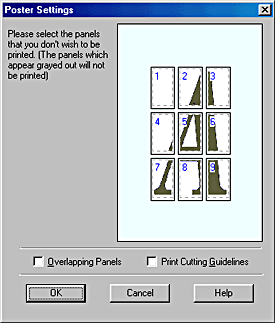

Click the Settings button to adjust the way your poster will print. The Poster Settings dialog box opens.

You can make the following settings.

Overlapping Panels

Slightly overlaps the images so that they can be aligned more precisely.

Print Cutting Guidelines

Prints border lines on the images to guide you when trimming the pages.

If you only want to print a few of the panels without printing the entire poster, click the panels you don't wish to print, then click OK to close the Poster Settings dialog box.


[Top]

Printing a watermark on your document

To print a watermark on your document, click anywhere in the Watermark list box on the Layout menu to open it, and select from the list of predefined watermarks.

You can also add your own text-based or image-based watermarks to the Watermark list. Follow the steps below.

Click the Add/Del button. The following dialog box appears.

Creating an image-based watermark:

Select BMP.

Click the Browse button to specify the bitmap file you want to use, then click OK.

Type a name for your watermark in the Name box, then click Save.

Creating a text-based watermark:

Select Text.

Type your text in the Text box. The text that you enter will also be assigned to the watermark as a watermark name.

If you want to change the watermark name, type a new name in the Name box, then click Save. Click OK to return to the Layout menu.

Making settings for your watermark:

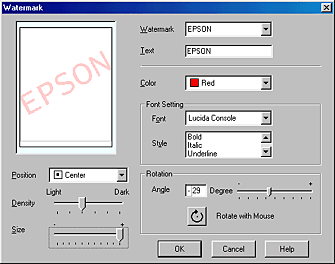

Click the Settings button. The following dialog box appears.

From the Watermark list box, select the watermark you want to make settings for, then make Color, Position, Density, Size, Font, Font Style and Angle settings. For details, please see the online help. Your settings are reflected in the display on the left side of the dialog box.

When you are finished making the settings, click OK.
