Various Printing Options

Borderless Printing

Available paper
Printing data
Paper loading
Driver settings
Printing

This printer allows you to print with no margin on all four sides of the paper. Follow the steps below to print with no margins.

Note:
This feature is not available with Mac OS X.

Notice that not all kinds of paper are available for this option.

Available paper

You can use this option with single sheets of the paper types listed below.

EPSON Photo Quality Ink Jet Paper
EPSON Photo Paper
EPSON Matte Paper-Heavyweight
EPSON Premium Glossy Photo Paper

You cannot use this feature with ColorLife Photo Paper, Photo Quality Glossy Film, Ink Jet Transparencies, Iron-On Cool Peel Transfer Paper or 360 dpi Ink Jet Paper. If you use other media, your printout will be blurry or smeared.


[Top]

Printing data

Because this option enlarges the image to a size slightly larger than the paper size, the portion of the image that extends beyond the edges of the paper will not be printed.

When creating your printing data using an application, note the following:

Printing on single sheet

You need to fit your data to the size of paper. If your application has margin settings, make sure they are set to zero before printing.


[Top]

Paper loading

After you select a media on which to print, load it onto your printer. Refer to the appropriate section below for your chosen media.

Single Sheets


[Top]

Driver settings

After you load the media, change the settings on your printer driver to the no-margin option.

Access the printer driver.
Accessing the Printer Software for Windows
Accessing the Printer Software for Macintosh

For Windows, select the desired Type and Size settings under Paper Options setting on the Main menu and select the Borderless check box.

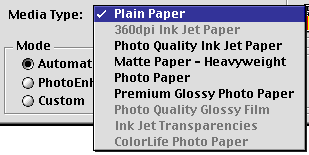

Media Type Settings

For Macintosh, select the Paper Size that you want to use on the Page Setup dialog box and select the No Margins check box, and then select the desired Media Type on the Print dialog box.
Media Type Settings

Click OK to close the driver setting dialog.


[Top]

Printing

After finishing all above steps, start printing.

We recommend you to print once as a test before printing large quantities.
