Printing Basics

For Windows Users

Step 1. Choosing the data to print
Step 2. Preparing and loading paper
Step 3. Making the printer driver settings
Step 4. Printing your data

Step 1. Choosing the data to print

Choose an A4-size data to print. Any data, such as photo or text, is OK.

[Top]

Step 2. Preparing and loading paper

After choosing the data, prepare the A4-size plain paper and load them into the printer.

To load the paper, follow the instructions below.

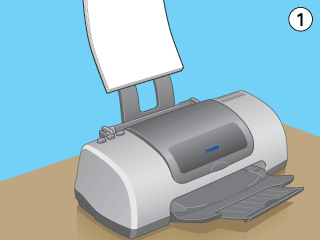

Lower the output tray and slide out the extension. Next, hold down the tab on the left edge guide and slide the guide so that the distance between the edge guides is slightly wider than the width of your paper.

Fan a stack of paper, and then tap it on a flat surface to even the edges.

Load the stack of paper in the sheet feeder with the printable side up and the right edge of the paper resting against the right edge guide. Then, slide the left edge guide against the left edge of the paper. Make sure that the paper stack is loaded under the tabs inside the edge guides.

[Top]

Step 3. Making the printer driver settings

To select the printer driver settings for A4-size plain paper, follow the instructions below.

Choose Print or Print Setup on the File menu of the Window's application.

In the dialog box that appears, click Printer, Setup, Options, or Properties. (Depending on your application, you may need to click a combination of these buttons.) The printer software opens.

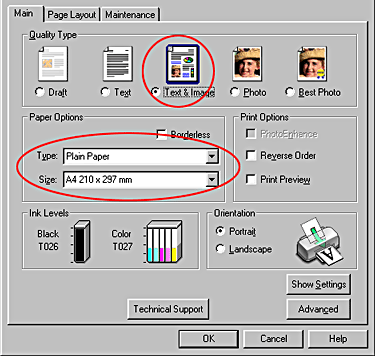

Click the Main tab, and then select Plain Paper and A4 as the Paper Options settings, and Text & Images as the Quality Type setting.

Click OK to close the window.

[Top]

Step 4. Printing your data

Now, print the data from your application.

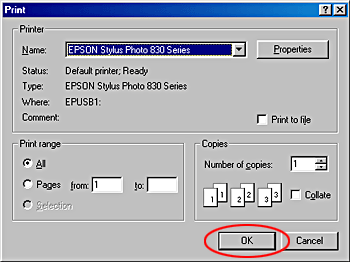

Click OK to print.

This completes the basic printing procedure. If you would like to try advanced printing, see Various Printing Options.
