Printing with Windows

Using the Printer Utilities

EPSON Status Monitor 3 (not available for Windows 3.1)
Nozzle Check
Head Cleaning
Print Head Alignment
Speed & Progress (not available for Windows 3.1)
Monitoring Preferences

The EPSON printer utilities allow you to check the current printer status and to perform some printer maintenance from your computer.

To use the utilities, click the Utility tab in the printer driver, then click the icon button for the utility that you wish to use. For information on how to access the printer software, see Accessing the printer software.

Note:
  • The letter in parentheses after each utility name indicates the shortcut key for that utility. Press Alt and that letter on the keyboard to open the utility.
  • Do not use the Nozzle Check, Head Cleaning, and Print Head Alignment utilities if your printer is connected to your computer through a network.
  • Do not use the Nozzle Check, Head Cleaning, and Print Head Alignment utilities while printing is in progress; otherwise, your printout may be marred.

EPSON Status Monitor 3 (not available for Windows 3.1)

EPSON Status Monitor 3 provides you with printer status information such as the amount of ink remaining and checks for printer errors.

This utility is only available when both of the following conditions are met:


[Top]

Nozzle Check

The Nozzle Check utility checks the print head nozzles for clogging. Check the nozzles if you notice that print quality has declined and after cleaning to confirm that the print head nozzles have been cleared. If the nozzle check indicates that the print head needs cleaning, you can access the Head Cleaning utility directly from the Nozzle Check utility. See Checking the Print Head Nozzles.


[Top]

Head Cleaning

The Head Cleaning utility cleans the print head. You may need to clean the print head when you notice print quality has declined. Use the Nozzle Check utility first to confirm that the print head needs to be cleaned. You can access the Nozzle Check utility directly from the Head Cleaning utility. See Cleaning the Print Head for details.


[Top]

Print Head Alignment

The Print Head Alignment utility aligns the print head. Use this utility if you notice a misalignment of vertical lines. Follow the on-screen instructions to use this utility.


[Top]

Speed & Progress (not available for Windows 3.1)

Click the Speed & Progress button to open this dialog box, where you can make settings related to print speed and progress.

The available settings are as follows.

High Speed Copies

To print multiple copies of your document faster, select High Speed Copies.

Show Progress Meter

To monitor the progress of your print job, select Show Progress Meter.

EPSON Printer Port (for Windows 98 and 95 only)

To speed up the data transfer rate to EPSON printers, select EPSON Printer Port.

If your computer supports ECP mode, enable DMA transfer to speed up printing.

For more details, see Making Speed & Progress settings (not available for Windows 3.1).

Note:
You cannot make this setting if your printer is connected via the USB port.

Always Spool RAW Datatype (for Windows 2000 and NT 4.0 only)

To have Windows NT-based clients spool documents using the RAW format instead of the EMF (metafile) format (Windows NT-based applications use the EMF format by default), select the Always Spool RAW Datatype check box.

Try using this feature if documents spooled in EMF format do not print correctly.

Spooling RAW datatype requires less resources than EMF, so some errors, such as "Insufficient Memory/Disk Space to Print" and "Slow print speed", can be solved by selecting the Always Spool RAW Datatype check box.

When spooling RAW datatype, print progress as displayed by the Progress Meter may differ from the actual print progress.

Monitoring Preferences

To open the Monitoring Preferences dialog box where you can make settings for EPSON Status Monitor 3, click this button. The settings are described in detail in the next section.


[Top]

Monitoring Preferences

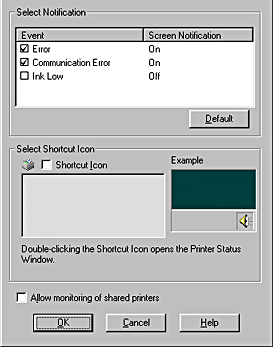

When you click the Monitoring Preferences button, the following dialog box appears.

The available settings are as follows:

Select Notification

Displays the current error item notification settings. In this area, you can designate whether to have general error messages, communication error messages, or ink status messages displayed during printing, scanning, or copying. Select the check boxes that correspond to the error types for which you wish to receive notification.

Select Shortcut Icon

Select the Shortcut Icon check box to have a shortcut icon placed in your Windows taskbar. Clicking the shortcut icon in the taskbar will open EPSON Status Monitor 3. To select which icon will be displayed, click the icon your prefer from the choices given; your selection will be shown at the right.

Allow monitoring of shared printers

Select this check box to allow a shared printer to be monitored by other computers.

Note:
Click the Default button to return all Select Notification settings to their default settings.


[Top]
