Product Information

Printer Parts

Printer Parts

Printer Parts

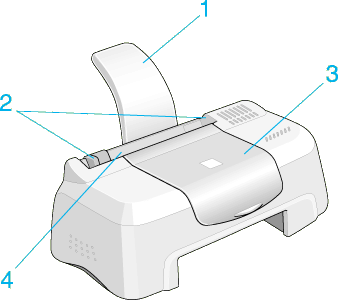

1. Paper support: Supports the paper loaded in the sheet feeder.

2. Edge guides: Help load the paper straight. Adjust the left edge guide to fit the width of your paper.

3. Printer cover: Covers the printing mechanism. Open only when installing or replacing ink cartridges.

4. Sheet feeder: Holds the blank paper, and automatically feeds the paper during printing.

1. Ink cartridge clamps: Hold the ink cartridges in place. Open only when installing or replacing ink cartridges.

2. Print head: Delivers ink to the page.
