Reference Guide

Printer Software Functions / Macintosh OS X

Making Settings in the Page Setup Dialog Box

Showing the current settings in the Page Setup dialog box

In the Page Setup dialog box, you can change the paper size, specify the paper orientation, and reduce or enlarge the print size of your document.

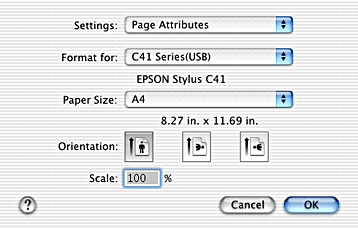

Select Page Setup from the File menu of your application. The Page Setup dialog box appears.

You can make the following settings in the Page Setup dialog box.

Settings	Select Page Attributes or Summary. When Page Attributes is selected, the page setting items will be displayed. When Summary is selected, a list of the current settings will be displayed. For more information on Summary, see Showing the current settings in the Page Setup dialog box.
Format for	Select the printer to be set up in the Page Setup dialog box.
Paper Size	Select the paper size that you want to use.
Orientation	Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.
Scale	Use this setting to reduce or enlarge the print size of your document.

Showing the current settings in the Page Setup dialog box

In the Page Setup dialog box with Summary selected in the Settings list, you can confirm the current settings in the Page Setup box.

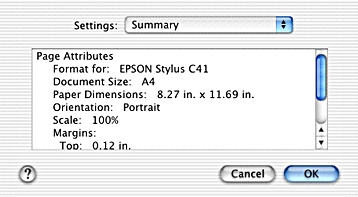

Select Summary in the Settings list. The following dialog box appears.

The current settings for Format for, Document size, Orientation, and Scale are displayed in the list.

Note:

The Summary option is a standard feature of Mac OS X.
