Using Special Media
Loading capacities for EPSON special media
Storing EPSON Photo Paper
You can achieve good results with most types of plain paper. However, coated paper results in higher quality printouts because these media absorb smaller amounts of ink.
EPSON provides special media that are formulated for the ink used in EPSON ink jet printers. EPSON recommends using media distributed by EPSON to ensure high-quality results.
When loading special media distributed by EPSON, read the instruction sheets packed with the media first and keep the following points in mind.
-
Cleaning sheets packaged with EPSON special media should not be used with this printer. The cleaning function performed by these sheets is not necessary with this type of printer, and the sheets could jam in the printer.
-

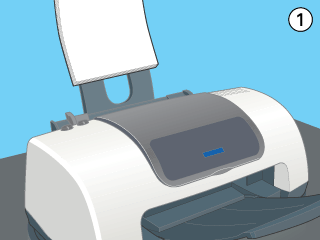

Load the media printable side up in the sheet feeder. See the instruction sheets packed with the media to determine which side is the printable side. Some types of media have cut corners to help identify the correct loading direction, as shown in the illustration.
-
If you extend the printable area by selecting Maximum as the Printable Area setting in the printer software, the cut corner on special paper may mar your printout.
-
Make sure that the paper stack fits under the arrow mark on the side of the left edge guide.
-
Make sure that the paper is loaded under the tabs inside the edge guides.
-

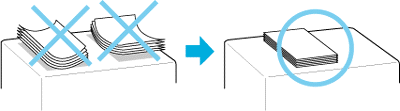

If the paper is curled, flatten it or curl it slightly toward the opposite side before loading. Printing on curled paper may cause ink to smear on your printout, especially when printing with Maximum selected as the Printable Area setting.
-
If you wish to print on the reverse side of an Ink Jet Card with Maximum selected as the Printable Area setting, curl the card so that it will lie flat before loading it.
Loading capacities for EPSON special media
Refer to the chart below to find the loading capacities for EPSON special media.
Media type
|
Loading capacity
|
360 dpi Ink Jet Paper
|
Up to 30 sheets
|
Photo Quality Ink Jet Paper
|
A4, Letter: Up to 30 sheets Legal: Up to 10 sheets
|
Photo Quality Ink Jet Cards, Ink Jet Note Cards, and Ink Jet Greeting Cards
|
Up to 30 cards Always place the included support sheet* under the cards.
|
Photo Quality Glossy Film
|
A4, Letter: Up to 20 sheets A6: One sheet at a time Always place a support sheet* or a sheet of plain paper under the glossy film
|
Ink Jet Transparencies
|
Up to 10 sheets
|
Photo Quality Self Adhesive Sheets
|
One sheet at a time
|
Photo Paper
|
4 x 6 inch Photo Paper: Up to 20 sheets Always place a support sheet* under the stack of Photo Paper. 200 x 300 mm Photo Paper: One sheet at a time
|
Photo Stickers 16 and Photo Stickers 4
|
One sheet at a time
|
Panoramic Photo Paper and Iron-On Cool Peel Transfer Paper
|
One sheet at a time
|
Matte Paper-Heavyweight
|
Up to 20 sheets Always place a support sheet* under the stack of Matte Paper-Heavyweight.
|
|
* Take care not to print on support sheets that are loaded under special media.
|
[Top]
Storing EPSON Photo Paper
Return unused paper to the original package as soon as you finish printing. EPSON recommends storing your printouts in a resealable plastic bag. Keep them away from high temperature, humidity, and direct sunlight.
