Printer Driver Settings / For Windows

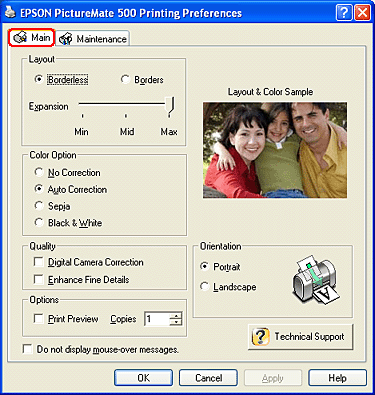

Making Settings on the Main Menu

You can make Layout, Color Option, Quality, Options, and Orientation settings on the Main menu. Refer to the appropriate section below.

Layout

Borderless

Prints without margins on all four sides of the paper.

Expansion slider:
When the Borderless is selected, the Expansion slider becomes available. Using the slider, you can control the amount of the image that extends beyond the edges of the paper during borderless printing.

For most print jobs, selecting Max is recommended in order to eliminate margins on all sides of the paper. Moving the slider towards Min decreases the amount of the image that extends beyond the edges of the paper; however, as this amount decreases, margins may begin to appear on one or more sides of the paper.

Borders

Prints with standard margins.

Note:

Using EPSON Easy Photo Print included on the CD-ROM is the easiest and quickest way to create borderless photos with this printer. EPSON Easy Photo Print also includes a number of features that help you create outstanding photos.

Color Option

You can select from the following settings.

No Correction	No filter is applied to the printouts.
Auto Correction	Applies Epson standard tone adjustment to your image.
Sepia	Applies a sepia tone to your photos.
Black & White	Prints the image in black and white only.

Note:

Sepia and Black & White mode are only available when printing 8-, 16-, 24-, or 32-bit color data.

Printing with Auto Correction, Sepia, or Black & White selected may increase the time required for printing, depending on your computer system and the amount of data contained in your image.

Quality

You can select one of the following quality types.

Digital Camera Correction	This mode applies image correction settings specially designed for scanned or digitally captured photos.
Enhance Fine Details	For top-quality photographic printing.

Note:

Digital Camera Correction mode is only available when printing 8-, 16-, 24-, or 32-bit color data.

Options

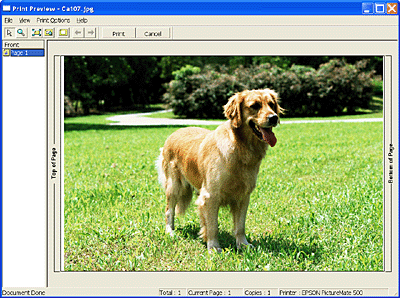

Print Preview

Lets you see a preview of your image before printing.

When you send a print job to the printer, the Print Preview window opens, allowing you to make changes before printing.

The Print Preview toolbar contains several icon buttons to perform the following functions.

Icon	Button name	Function
	Zoom	Click this button to enlarge or reduce the size of the previewed page.
	Fit To Screen	Click this button to scale the previewed page so that it fits the size of the window. This is convenient when you want to see the entire page at one time.
	Maximum Zoom	Click this button to display the previewed page at the maximum possible zoom ratio.
	Printable Area On/Off	Click this button to display or hide the borderlines which indicate the printable area. The printer cannot print anything which is outside of this area.

You can also manipulate the image being previewed in the following ways:

Reduce or enlarge the size of the preview window.

Magnify the previewed image. Click Magnify on the View menu to open the Magnify window, which magnifies the area of the previewed image that is outlined by the red box. By dragging the red box, you can change which part of the image is magnified.

After you have previewed the image, click Print to print the image, or click Cancel to cancel printing.

Copies

Select the number of copies that you want to print.

Orientation

Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.

Technical Support

Click this button to get further information. Clicking this button will either access more detailed information or will access a technical support Web site.
