Printer Software Settings / For Mac OS 9

Printer Utilities

Epson printer utilities allow you to check the current printer status and maintain certain features of your printer from your computer.

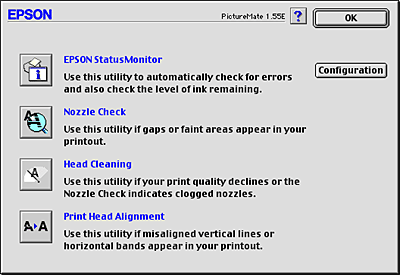

To use the utilities, click the Utility icon button in the Print or Page Setup dialog box, then click the button for the utility that you want to use.

EPSON StatusMonitor

Monitors the printer status. If it detects a printer error, it will inform you with an error message.

You can also use this utility to check how much ink is remaining before printing.

To use the EPSON StatusMonitor, click the EPSON StatusMonitor button.
See Using EPSON StatusMonitor

Nozzle Check

Checks the print head nozzles for clogging. Check the nozzles if you notice print quality has declined and after cleaning to confirm that the print head nozzles have been cleared. If the nozzle check indicates that the print head needs cleaning, you can access the Head Cleaning utility directly from the Nozzle Check utility.
See Checking the Print Head Nozzles

Head Cleaning

Cleans the print head. You may need to clean the print head if you notice print quality has declined. Use the Nozzle Check utility first to confirm that the print head needs to be cleaned.
See Cleaning the Print Head

Print Head Alignment

The Print Head Alignment utility can be used to improve the print quality of your images. The print head alignment may need to be adjusted if vertical lines appear out of alignment or if white, black, dark, or light banding appears in your images. Follow the on-screen instructions for using this utility.
See Aligning the Print Head

Configuration

Click this button to open the Configuration dialog box, where you can change the method by which the EPSON Status Monitor utility notifies you when the printer status changes.
See Using the Configuration Settings dialog box
