Reference Guide

Printer Software Functions / For Mac OS X Users

Making Settings in the Page Setup Dialog Box

Showing the current settings in the Page Setup dialog box

In the Page Setup dialog box, you can change the paper size, specify the paper orientation, and reduce or enlarge your printout.

Choose Page Setup from the File menu of your application. The Page Setup dialog box appears.

You can make the following settings in the Page Setup dialog box.

Settings	Select Page Attributes or Summary. When Page Attributes is selected, the page setting items will be displayed. When Summary is selected, a list of the current settings will be displayed. For more information on Summary, see Showing the current settings in the Page Setup dialog box.
Format for	Select the printer to be set up in the Page Setup dialog box.
Paper Size	Select the paper size that you want to use.
Orientation	Select Portrait (tall) or Landscape (wide) to change the orientation of your printout.
Scale	Use this setting to reduce or enlarge the size of your image.

Showing the current settings in the Page Setup dialog box

In the Page Setup dialog box with the Summary option selected under Settings, you can confirm the current settings in the Page Setup box.

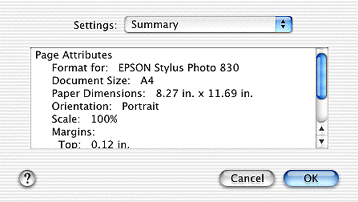

Select Summary as Settings. The following dialog box appears.

The current settings of Format for, Document size, Orientation, and Scale are displayed in the list.

Note:

The Summary option is a standard feature of Mac OS X.
