Printing with Windows

Increasing the Print Speed

General tips
Making the Speed & Progress settings
Using Port Configuration (Windows NT 4.0 only)

Follow the instructions in this section to increase the printing speed of your printer.

General tips

Just as printing at a high resolution requires more processing time than printing at a low resolution, printing in color takes longer than printing in black-and-white because the volume of data in a color document is much greater. For this reason, it is important to be selective in your use of color if you also require a fast print speed.

However, even if your document requires the highest resolution and extensive use of color — for example, when you are printing a camera-ready composite that includes color photographs — it may still be possible to optimize the print speed by adjusting other printing conditions. Keep in mind that changing some conditions to increase the print speed may also lower print quality.

The following table shows the factors that inversely affect print speed and print quality (increasing one will decrease the other).

Print quality
Print speed

Lower
Faster

Higher
Slower

Printer software menu

Printer software settings

Print Quality

Economy, Normal


Advanced dialog box

High Speed

On

Off

Finest Detail

Off

On

Data characteristics

Image size

Small

Large

Resolution

Low

High

The table below shows the factors related to print speed only.

Print speed

Faster

Slower

Printer software menu

Printer software settings

Ink

Black

Color

Advanced dialog box, Main menu

Flip Horizontal*

Off

On

Advanced dialog box

Collate*

Off

On

Paper menu

Reverse Order*

Off

On

Data characteristics

Variety of colors

Grayscale**

Full color

Hardware resources

System speed

Faster

Slower

HDD free space

Large

Small

Memory free space

Large

Small

Software status

Running applications

One

Many

Virtual memory

Not in use

In use

*  Varies depending on the printer software and application that you are using.
**  Grayscale means using black ink only to print varying shades of gray, from pure black to pure white.


[Top]

Making the Speed & Progress settings

You can make certain print speed settings in the Speed & Progress dialog box. Click the Speed & Progress button on your printer software's Utility menu. The following dialog box appears.

The available settings that are related to print speed are as follows:

High Speed Copies

To print multiple copies of your document faster, select High Speed Copies. This speeds up printing by using your hard disk space as a cache when printing multiple copies of your document.

EPSON Printer Port (For Windows Me, 98 and 95 only)

Select this check box to enable the EPSON printer port, which is optimized for EPSON printers, instead of the Windows default printer port. This speeds up the data transfer rate to EPSON printers.

Use DMA transfer (For Windows Me, 98 and 95 only)

If your computer has a parallel port which supports ECP mode, you can enable DMA transfer to speed up printing. See your computer manual to determine if it supports ECP mode and DMA transfer.

To determine whether you need to enable DMA transfer, compare the message below the EPSON Printer Port check box to this table, and take the recommended action.

Message

Action

High Speed (DMA) Transfer enabled.

DMA transfer is already enabled. Click OK to close the dialog box.

For higher data transfer rates, use DMA Transfer.

Follow the steps below this table to enable DMA transfer.

(No message)

Your system's parallel port setting does not allow DMA transfer. However, if you change the parallel port setting to ECP or Enhanced using your computer's BIOS Setup program, you may be able to use DMA transfer. Consult your computer manual or computer manufacturer for instructions. Once you change the parallel port setting, follow the steps below this table to enable DMA transfer.

Note:
Before you run the BIOS Setup program, uninstall the printer software using Add/Remove Programs in the Control Panel. After running the BIOS Setup program, reinstall the printer software.

If you want to enable DMA transfer, follow the steps below.

Double-click the My Computer icon on your desktop and then Control Panel.

Double-click the System icon and click the Device Manager tab.

Double-click the Ports (COM & LPT) icon and then the LPT1 icon. If your printer is connected to a port other than LPT1, double-click the appropriate port icon.

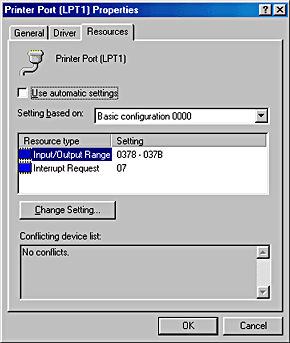

Click the Resources tab, then clear the Use automatic settings check box. Write down the Input/Output Range settings shown in the resource settings box.

Select a basic configuration setting from the Setting based on list that uses the same Input/Output Range settings as those you wrote down in Step 4, and make sure that the Direct Memory Access channel and Interrupt Request numbers are allocated and displayed. Confirm also that the Conflicting device list text box shows No conflicts.

Click OK to save the settings.

Reopen the Speed & Progress dialog box to verify whether DMA transfer has been enabled.

Note:
You may not be able to use DMA transfer on some computers even after you make the settings explained above. Consult your computer maker for information on the DMA transfer capability of your computer.


[Top]

Using Port Configuration (Windows NT 4.0 only)

Note:
Port settings are complicated and should only be made by an experienced user with administrative privileges.

If your computer has a parallel port that supports ECP mode, you can make certain print speed settings in the Port Configuration dialog box. Before making settings, make sure that ECP mode is selected in your computer settings. For details about ECP mode, see your computer manual.

To access the Port Configuration dialog box, click the Start button, point to Settings, and click Printers. Then, select your printer and click Properties on the File menu. The printer software opens. Click the Ports tab, then click Configure Port. The following dialog box appears.

Click the LPT port tab for the port to which your printer is connected, then click the Port Configuration button.

Note:
If your printer is connected to LPT1, only the LPT1 tab is available.

The available settings are as follows:

Resource settings (IRQ and DMA)

If you have connected your printer to LPT2 or LPT3, making IRQ and DMA settings here may speed up printing. Click Change setting and input the same configuration numbers for IRQ and DMA which you have made with your expansion board. See your computer documentation to determine the settings for IRQ and DMA.

Use DMA transfer

Using DMA transfer to send print data to the computer may help speed up printing. If the Use DMA Transfer check box is not enabled, you must first enable DMA transfer in your computer settings. For details, see your computer documentation.


[Top]
