Technical Specifications

Printing : Home > Product Information

Paper
Memory card slots
Ink cartridges
Mechanical
Electrical
Environmental
Standards and approvals
Interface

Paper

Note:

Since the quality of any particular brand or type of paper may be changed by the manufacturer at any time, Epson cannot attest to the quality of any non-Epson brand or type of paper. Always test samples of paper stock before purchasing large quantities or printing large jobs.

Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade of paper.

Use paper under normal conditions:
Temperature 15 to 25 ˚C (59 to 77 ˚F)
Humidity 40 to 60% RH

Single sheets:

Size	A4 210 × 297 mm 10 × 15 cm (4 × 6 in.) 13 × 18 cm (5 × 7 in.) A6 105 × 148 mm A5 148 × 210 mm B5 182 × 257 mm 9 × 13 cm (3.5 × 5 in.) 13 × 20 cm (5 × 8 in.) 20 × 25 cm (8 × 10 in.) Letter 8 1/2 × 11 in. Legal 8 1/2 × 14 in. 16:9 wide size (102 × 181 mm)
Paper types	Plain bond paper or special paper distributed by Epson
Thickness (for plain bond paper)	0.08 to 0.13 mm (0.003 to 0.005 in.)
Weight (for plain bond paper)	64 g/m² (17 lb) to 90 g/m² (24 lb)

Envelopes:

Size

Envelope #10 4 1/8 × 9 1/2 in.

Envelope DL 110 × 220 mm

Envelope C6 114 × 162 mm

Paper types

Plain bond paper

Weight

75 g/m² (20 lb) to 90 g/m² (24 lb)

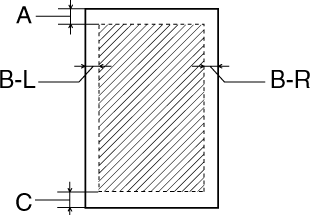

Printable area

Diagonal lines show printable area.

Single sheets and index cards:

Normal	Borderless

Envelopes:

A:	The minimum top margin is 3.0 mm (0.12").
B-L:	The minimum left margin is 3.0 mm (0.12").
B-L:	The minimum left margin is 5.0 mm (0.20") for envelopes.
B-R:	The minimum right margin is 3.0 mm (0.12").
B-R:	The minimum right margin is 5.0 mm (0.20") for envelopes.
C:	The minimum bottom margin is 3.0 mm (0.12") for single sheets.
D:	The minimum bottom margin is 20 mm (0.78") for envelopes.

Note:

Depending on the type of paper, print quality may decline in the top and bottom areas of the printout, or the area may be smeared.

Top

Memory card slots

Compatible memory cards

CompactFlash

Memory Stick

Memory Stick PRO

Memory Stick Duo*

Memory Stick PRO Duo*

MagicGate Memory Stick

MagicGate Memory Stick Duo*

Microdrive

SD Memory Card

SDHC Memory Card

MultiMediaCard

miniSD card*

miniSDHC card*

microSD card*

microSDHC card*

xD-Picture Card

xD Picture Card Type M

xD Picture Card Type H

Voltage Requirements

3.3 v

Maximum current is 500 mA

* Adapter required.

Memory card slot compatibility:

CF Type II card slot	Compatible with CF+ and CompactFlash Specification 3.0 cards
Memory Stick/MemoryStick PRO card slot	Compatible with Memory Stick Standard version 1.42-00 or Memory Stick Standard Memory Stick PRO Format Specifications version 1.02-00 cards
SD/MMC card slot	Compatible with SD Memory Card Specifications / PART1. Physical Layer Specification Version 2.00 cards and MultiMediaCard Standard Version 4.1 cards
xD-Picture card slot	Compatible with xD-Picture Cards. Card Specification Version 1.20 Type M and Type H cards.

Top

Ink cartridges

Color

Yellow, Magenta, Cyan, Black

Cartridge life

Within 6 months of opening the package at 25 ˚C (77 ˚F)

Temperature

Storage:
-20 to 40 ˚C (-4 to 104 ˚F)

1 month at 40 ˚C (104 ˚F)

Freezing:*
-16 ˚C (3.2 ˚F)

* Ink thaws and is usable after approximately 3 hours at 25 ˚C (77 ˚F).

Caution:

Epson recommends the use of genuine Epson ink cartridges. Other products not manufactured by Epson may cause damage that is not covered by Epson’s warranties, and under certain circumstances, may cause erratic printer behavior.

Do not use an ink cartridge if the date on the package has expired.

Do not refill the ink cartridge. Other products not manufactured by Epson may cause damage that is not covered by Epson’s warranties, and under certain circumstances, may cause erratic printer behavior.

Top

Mechanical

Paper path	Sheet feeder, top entry
Sheet feeder capacity	About 100 sheets at 64 g/m² (17 lb) paper
Dimensions	Storage Width: 463 mm (18.2 inches) Depth: 354 mm (13.9 inches) Height: 196 mm (7.7 inches)*
Dimensions	Printing Width: 463mm (18.2 inches) Depth: 491 mm (19.3 inches) Height: 284 mm (11.2 inches)
Weight	Approx. 6.9 kg (15.2 lb) without the ink cartridges

* Including the raised LCD section.

Top

Electrical

		100-120 V Model	220-240 V Model
Input voltage range		AC 90 to 132 V	AC 198 to 264 V
Rated frequency range		50 to 60 Hz
Input frequency range		49.5 to 60.5 Hz
Rated current		0.4 A (Max. 0.7 A)	0.2 A (Max. 0.4 A)
Power consumption	Copying	Approx. 13 W (ISO/IEC10561 Letter Pattern)	Approx. 13 W (ISO/IEC10561 Letter Pattern)
	Low power mode	Approx. 5.0 W	Approx. 5.0 W
	Sleep mode	Approx. 3.5 W	Approx. 3.5 W
	Power off mode	Approx. 0.2 W	Approx. 0.3 W
