Understanding EPSON TWAIN Features

Configuration

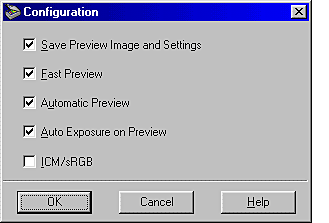

Click the Configuration button on the Manual mode window to view the following dialog box. You can make settings that affect the Preview window.

Windows

Macintosh

Save Preview Image and Settings:

Select this check box to automatically save the preview image and all the image settings when you exit EPSON TWAIN (quit scanning). The next time you restart EPSON TWAIN, the image and settings will reappear.

The Image Type, Destination, Tone curve settings you made are automatically saved whether this check box is on or off.

Fast Preview:

Enables high-speed loading of the preview image. If this is selected, the preview image is scanned in the Draft mode. If this is not selected, the preview image is scanned in the Best mode, and you can get accurate values for the Highlight, Shadow, and Gray Balance Intensity by sampling with the eyedropper in the preview image.

Do not use this feature (do not select the check box) when quality is more important than speed.

Automatic Preview:

Preview automatically starts when EPSON TWAIN is launched.

Auto Exposure on Preview:

Displays the preview image with automatically optimized exposure settings. The result is the same as if you clicked the Auto Exposure button.

Note:

This check box appears dimmed and is not available when the ICM/sRGB check box is selected.

ICM/sRGB (for Windows)

Depending on the version of Windows installed on your computer, this setting may be unavailable or have a different caption.

Select this check box to reproduce the colors in your image using the Windows ICM color management system. This setting appears only with Windows.

Note:

If your printer and monitor do not support ICM, be sure this check box is cleared.

This check box is available only when Pixel Depth is set to 42-bit Color or 24-bit Color in the Image Type dialog box.

See Using ICM/sRGB (For Windows Users) for more details.

ColorSync (for Macintosh)

Select this check box to reproduce the colors in your image using the ColorSync color management system. This setting appears only with Macintosh.

Note:

If your printer and monitor do not support ColorSync, leave this check box clear.

This check box is available only when Pixel Depth is set to 42-bit Color or 24-bit Color in the Image Type dialog box.

See Using ColorSync (For Macintosh Users) for more details.
