Online Reference Guide
|
|
Maintenance and Troubleshooting
Transporting the Scanner
If you are transporting the scanner a significant distance or storing it for an extended period, follow the steps below to secure the carriage.
![](IMAGES/R_1.GIF) |
Turn on the scanner and wait until the carriage moves to the home position (position nearest the cover hinges). When the indicator light remains on (green), turn off the scanner.
|
![](IMAGES/R_2.GIF) |

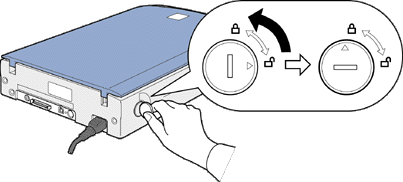

Turn the transportation lock to the locked position to secure the carriage.
|
![](IMAGES/R_SPACE.GIF) | ![](IMAGES/R_NOTE.GIF) |
Note:
|
![](IMAGES/R_SPACE.GIF) | ![](IMAGES/R_SPACE.GIF) |
If you are using the Film Adapter and it is switched on, the carriage will not move to the home position. Remove the Film Adapter first, then perform the steps above.
|
