EpsonNet WebManager

EpsonNet WebManager Operating Structure

EpsonNet WebManager needs to be installed in the computer that works as the network server. You can select the either of the two methods described below to use EpsonNet WebManager.

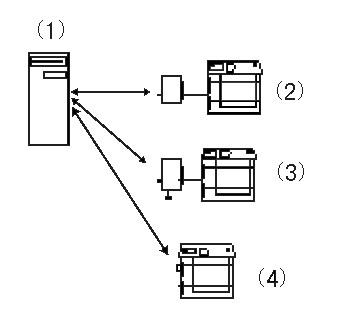

EpsonNet WebManager and a web browser running on the same PC

No special server is required. Just install EpsonNet WebManager and a web browser on the same computer that functions as a server. All administration is possible from the network administrator's Windows 98/95/NT 4.0/NT 3.51 computer.

1: EpsonNet WebManager server

2: C82362 (interface card)

3: C82363 (interface card)

4: EPL-N4000+

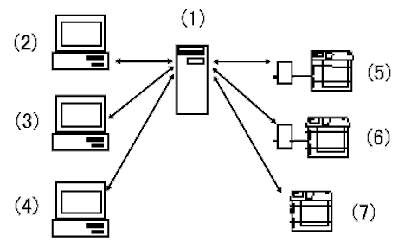

EpsonNet WebManager and a web browser running on different PCs

Install EpsonNet WebManager in the server, and install a web browser in the client computers. Run the web browser on a client computer to access EpsonNet WebManager on the server. Multi-platform network administration is possible from Windows, Macintosh, and UNIX platforms through the browser.

1: EpsonNet WebManager server

2: Windows

3: Macintosh

4: UNIX

5: C82362 (interface card)

6: C82363 (interface card)

7: EPL-N4000+
