EPSON Status Monitor 3 (Windows only)

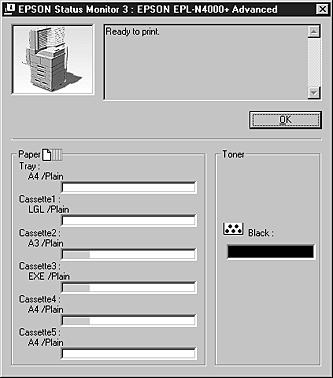

You can monitor the current status and consumable information of the printer in the EPSON Status Monitor 3 dialog box.
|
Printer image: |
The image at the upper left shows the printer status graphically. |
|
Text box: |
The text box next to the printer image displays the current status of the printer. When a problem occurs, the most likely solution is displayed. |
|
OK button: |
Click OK to close the dialog box. |
|
Paper: |
Displays the paper size, type and approximate amount of remaining paper in each paper source. When the amount of paper remaining is low (20 percent or less), the bar chart will turn red. Optional cassettes are displayed only if they are installed. |
|
Toner: |
Displays the amount of toner remaining. The toner icon flashes when the toner is low (10 percent or less). |
