Printer Parts

1. face-down tray
2. right cover
3. MP tray (Multi-Purpose tray)
4. expansion tray
5. paper cassette cover (cover D)
6. paper path unit (unit C)
7. paper cassette
8. Duplex Unit slot cover
9. front cover
10. control panel

1. power switch
2. output path cover (cover A)
3. fuser unit (unit B)
4. face-up tray
5. AC inlet
6. Ethernet interface connector
7.Type B Interface card slot cover
8. parallel interface connector
9. USB interface

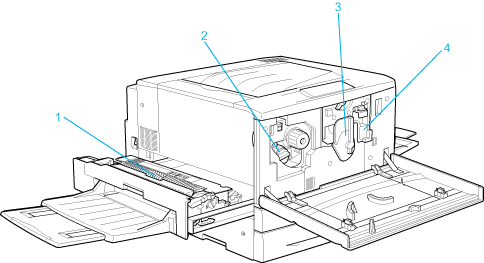

1. fuser
2. toner cartridge
3. photoconductor unit
4. waste toner collector

Control panel

1. LCD Panel
2. Up button
3. Enter button
4. Job Cancel button
5. Start/Stop button
6. Error light
7. Ready light
8. Data light
9. Down button
10. Back button
