How to / Replacing Consumable Products

Transfer Unit

Prepare a new transfer unit for replacement when you get a message informing you to do so.

Handling precautions

Note the following handling precautions before replacing the transfer unit:

Do not touch the surface of the transfer unit. Doing so may impair print quality.

Warning:

Do not dispose of the used transfer unit in fire, as it may explode and cause injury. Dispose of it according to local regulations.

Keep the fuser unit out of the reach of children.

Replacing the transfer unit

Follow these steps to replace the transfer unit.

Press the latch on cover A and open the cover A.

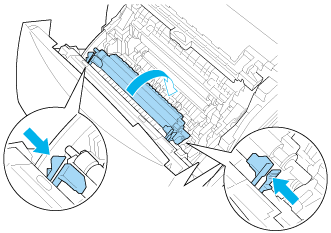

Grasp the two orange tabs and pull the unit forward and down, then lift the unit out of the printer.

Pull the transfer unit out of the printer.

Take the new transfer unit from its package.

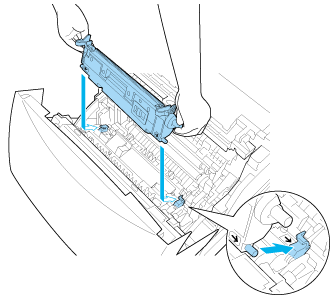

Hold the new transfer unit by the orange tabs and lower it into the printer, making sure that it fits into the guides. Push the transfer unit in and up until it clicks into place.

Close cover A.
