Using EpsonNet EasyInstall to Make Settings (For Windows Users)

Use EpsonNet EasyInstall to configure the network interface for use on the TCP/IP network and install the printer driver on your computer.

Insert the Software CD-ROM in the CD-ROM drive.

The Software Installation screen opens automatically.

If the Software Installation screen does not appear, double-click EPSETUP.EXE on the CD-ROM.

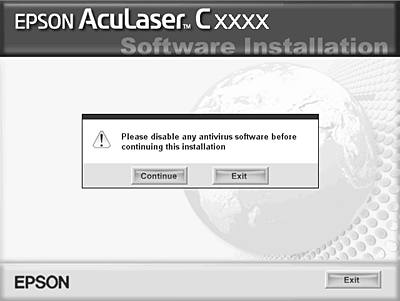

Make sure that any antivirus software is disabled, and then click the Continue button.

Read the license agreement, and then click the Agree button.

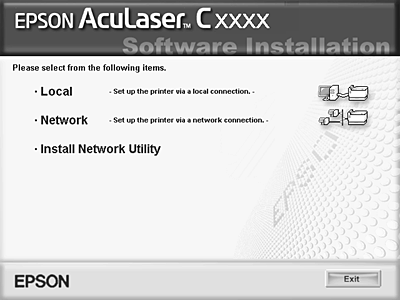

Select Network.

Note:

If your printer is connected to your computer with a USB cable or a parallel cable, select Local. Then follow the on-screen instructions.

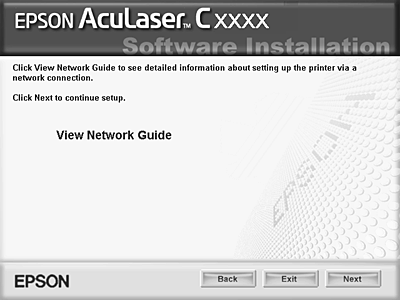

Click View Network Guide to see detailed information. Click the Next button to continue setup.

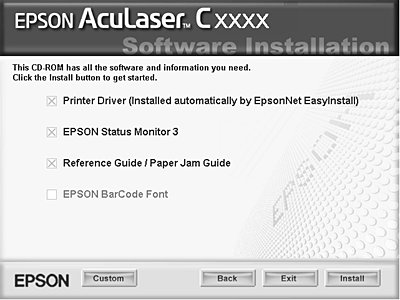

Click the Install button. Follow the on-screen instructions.

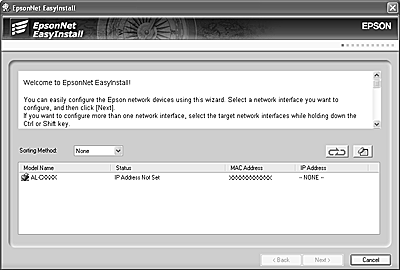

EpsonNet EasyInstall starts. Select the printer and then click the Next button.

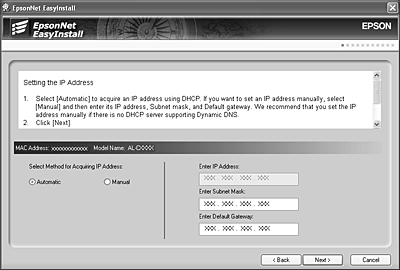

Select a method for specifying the IP address. If you select Automatic, DHCP becomes available and assigns an IP address automatically. If you want to set the IP address manually, select Manual and then enter the IP address, subnet mask, and default gateway. Click the Next button.

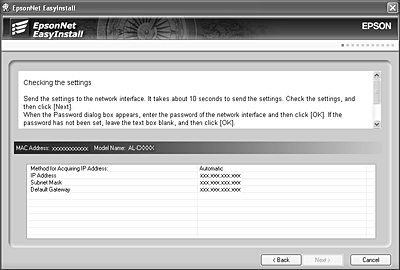

Confirm the settings you have made, and then click the Next button.

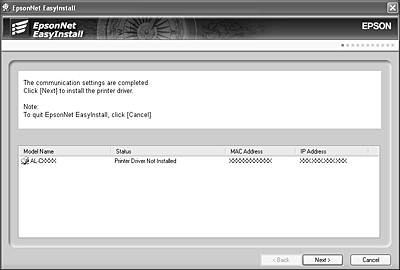

Select the printer with its IP address you have just set, and then click the Next button to install the printer driver.

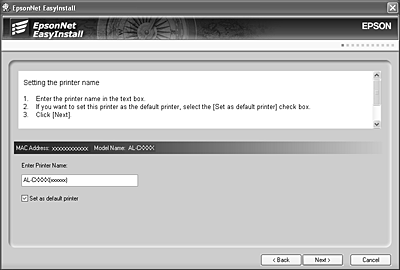

Enter the printer name. If you want to set the printer as the default printer, select the Set as default printer check box. Click the Next button.

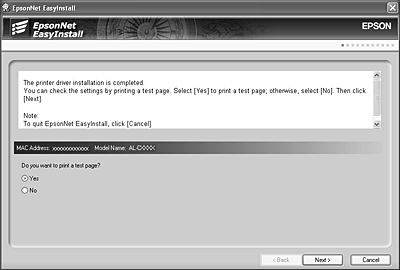

Select Yes to print a test page; otherwise, select No. Click the Next button.

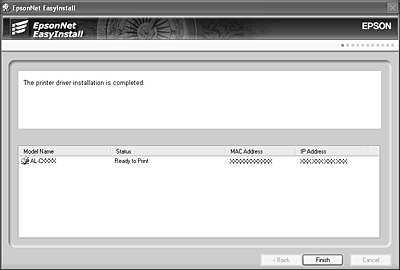

Click the Finish button to complete the installation.

Now you can use the printer on the TCP/IP network.
