How To / Installing Components on Your Computer

Windows 2000

For Windows 2000, use the following procedure to install the necessary components.

Note:
  • The Windows 2000 CD-ROM may be required during the installation.
  • When using TCP/IP or IPP for printing, you need to set the IP address, the subnet mask, and the default gateway of the computer.

Click Start, point to Settings, and then select Network and Dial-up Connections. The Network and Dial-up Connections screen appears.

Right-click the desired network connection and then select Properties.

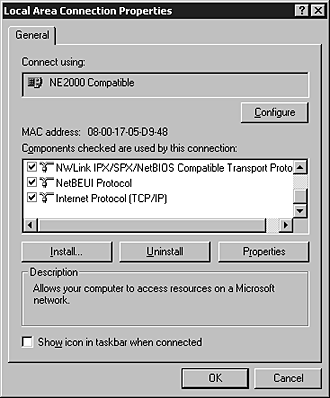

Check if the following necessary components are in the list. If they are already installed, go to the next chapter.

The following table lists the components required for configuring the network interface with EpsonNet Config.

EpsonNet Config's setting screens

Necessary components

TCP/IP, AppleTalk, IPP, SNMP (IP trap)

Internet Protocol (TCP/IP)

MS Network

NetBEUI or Internet Protocol (TCP/IP)

NetWare, SNMP (IPX trap)*

Latest Novell Client downloaded from the Novell Web site

*  Only for printers supporting NetWare queue-based printing

Note for users of printers supporting NetWare queue-based printing:
Do not run Novell Client for Windows 95/98 version 3.00 and Novell Client for Windows NT version 4.50 when using the following modes: NetWare 3.x/4.x Bindery Print Server mode, NetWare 3.x Remote Printer mode, NetWare 4.x Bindery Remote Printer mode, and NetWare 4.x/5.x NDS Remote Printer mode.

The following table lists the components required for network printing.

Printing method

Necessary components

LPR or Internet printing

Internet Protocol (TCP/IP)

Microsoft Network Shared printing

Internet Protocol (TCP/IP) or NetBEUI
Client for Microsoft Networks

Printing via NetWare server*

Latest Novell Client downloaded from the Novell Web site

*  If you are using a printer that does not support NetWare queue-based printing, print via the NetWare server using EpsonNet NDPS Gateway.

If the necessary components are not in the list, click Install to install them, as described below.

For LPR or Internet printing:
Select Protocol and then click Add. In the Select Network Protocol dialog box, select Internet Protocol (TCP/IP) and then click OK.

For Microsoft Network Shared printing:
To use Internet Protocol, see the description described earlier to install Internet Protocol (TCP/IP).
To use NetBEUI, select Protocol and then click Add. Select NetBEUI Protocol and then click OK.
Select Client and then click Add. Select Client for Microsoft Networks and then click OK.

For printing via NetWare server:
Download the latest Novell Client from the Novell Web site and install it on the computer. Also, be sure to install either IP or IPX. See the Novell Web site for detailed information.

For LPR, Internet, Microsoft Network Shared printing:
Double-click Internet Protocol (TCP/IP) on the Configuration menu to open the TCP/IP Properties dialog box. Set the IP address, the subnet mask, etc. and then click OK.

Restart the computer.

The necessary components are now installed. Go to the section Connecting the Network Interface to the Network.
