Printer Parts

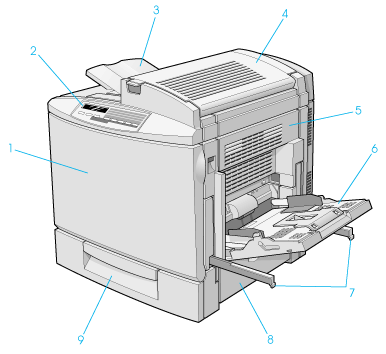

1. front cover
2. control panel
3. paper support
4. top cover (cover A)
5. right cover (cover B)
6. MP tray
7. right-side handles
8. standard lower cassette side cover (cover C1)
9. standard lower cassette

1. output tray (face-down tray)
2. left-side handles
3. AC inlet
4. Ethernet connector
5. parallel connector
6. interface slot cover
7. power switch

1. waste toner collector
2. developer cartridge
3. transfer belt unit
4. fuser oil roll
5. fuser unit
6. second transfer roll
7. photoconductor unit
8. print head filter

Control panel
