Product Information

Printer Parts

1. front cover
2. indicator lights
3. paper support
4. top cover (cover A)
5. right cover (cover B)
6. MP tray
7. right-side handles
8. standard lower cassette side cover (cover C1)
9. standard lower cassette

1. output tray (face-down tray)
2. left-side handles
3. AC inlet
4. USB interface connector
5. parallel interface connector
6. interface slot cover
7. power switch

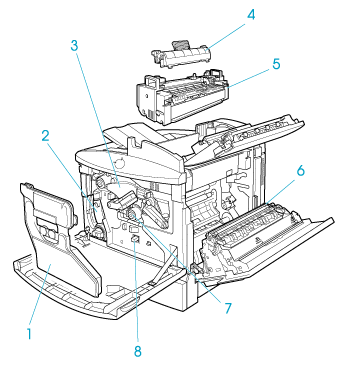

1. waste toner collector
2. developer cartridge
3. transfer belt unit
4. fuser oil roll
5. fuser unit
6. second transfer roll
7. photoconductor unit
8. print head filter

Indicator lights

1. ready light
2. error light
