How to / Using Roll Paper

Attaching the Catcher for 210 mm Roll Paper

To receive the 210 mm roll paper cut off by the cutter, attach the catcher for 210 mm roll paper. Follow the steps below.

Caution:
  • When using the catcher for 210 mm roll paper, move the printer to the edge of the desk or table. Be careful not to let the printer fall from the desk or table when moving it. In addition, do not place the printer on an unstable surface.
  • Care should be taken not to damage your eyes with the tip of the catcher.
  • Keep the catcher out of the reach of children.

Note:
You do not need to attach the catcher for 210 mm roll paper when cutting the roll paper other than 210 mm.

Remove the protective cap from the tip of the catcher for 210 mm roll paper.

Note:
  • Store the removed protective cap in a safe place.
  • Attach the protective cap when storing the catcher for 210 mm roll paper.

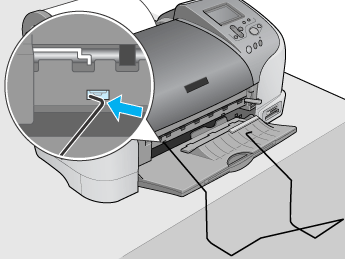

Insert the left tip into the left hole on the front panel of the printer.

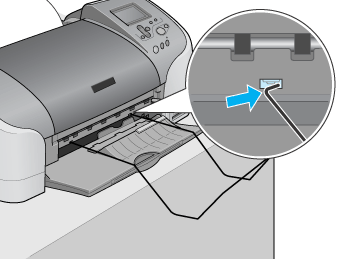

Insert the right tip into the right hole on the front panel of the printer.

Caution:
  • The catcher for 210 mm roll paper can hold only one sheet. When one sheet is printed, immediately remove the sheet from the catcher.
  • To remove the catcher for 210 mm roll paper, pull out the tip of the catcher being inserted in the printer hole diagonally.
