How To / Paper Handling

Loading Plain Paper

Follow the steps below to load plain paper in the printer.

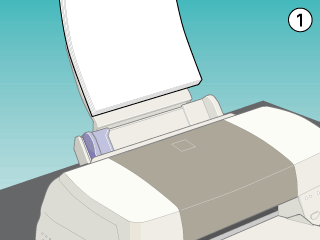

Lower the output tray and slide out the extension. Next, slide the left edge guide so that the distance between the edge guides is slightly wider than the width of your paper.

Fan a stack of paper, then tap it on a flat surface to even the edges.

Load the stack of paper with the printable side up and the right edge of the paper resting against the right side of the sheet feeder. Then slide the left edge guide against the left edge of the paper.

Note:
  • Always load paper into the sheet feeder short edge first.
  • Make sure the paper stack fits under the arrow mark inside the edge guide.
