How To / Paper Handling

Loading Plain Paper

Follow the steps below to load plain paper in the printer.

Lower the output tray. Next, slide the left edge guide so that the distance between the edge guides is slightly wider than the width of your paper.

Fan a stack of paper, then tap it on a flat surface to even the edges.

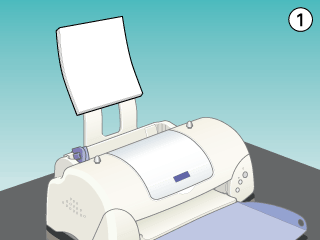

Load the stack of paper in the sheet feeder with the printable side up and the right edge of the paper resting against the right edge guide. Then, slide the left edge guide against the left edge of the paper.

Note:
  • Leave enough space in front of the printer for paper to be fully ejected.
  • Remove your printouts from the output tray shortly after printing; otherwise, the output tray may warp.
  • Always load paper into the sheet feeder short edge first.
  • Make sure that the paper stack fits under the arrow mark inside the edge guide.
