Loading Envelopes

Follow the steps below to load envelopes into the printer.

Pull out the output tray. Next, hold down the tab on the left edge guide and slide the guide so that the distance between the edge guides is slightly wider than the width of your envelope.

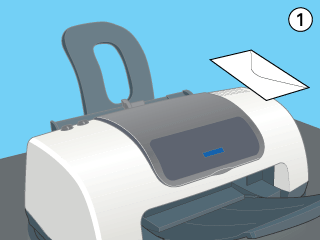

Load envelopes short edge first with the flap side down, as shown in the illustration.

You can load up to 10 envelopes at a time in the sheet feeder.

Note:

The folding quality and thickness of envelopes vary widely. If the total thickness of the stack of envelopes exceeds 10 mm, press each envelope in the stack flat before loading. If print quality declines when a stack of envelopes is loaded, load one envelope at a time.

Do not use envelopes that are curled or folded.

Flatten the envelope flaps before loading.

Avoid using envelopes that are too thin as they may curl during printing.

EPSON recommends the use of black ink when printing on envelopes. Should you decide to use another ink color of ink, set a wider margin in order to prevent ink from smearing across the bottom portion of the envelope.
